When I first got into graphics, I liked to prototype effects using only shader code, without textures. It was a fun challenge during long train rides while I was studying. I had about three hours and no internet, so it was pushing my creativity.

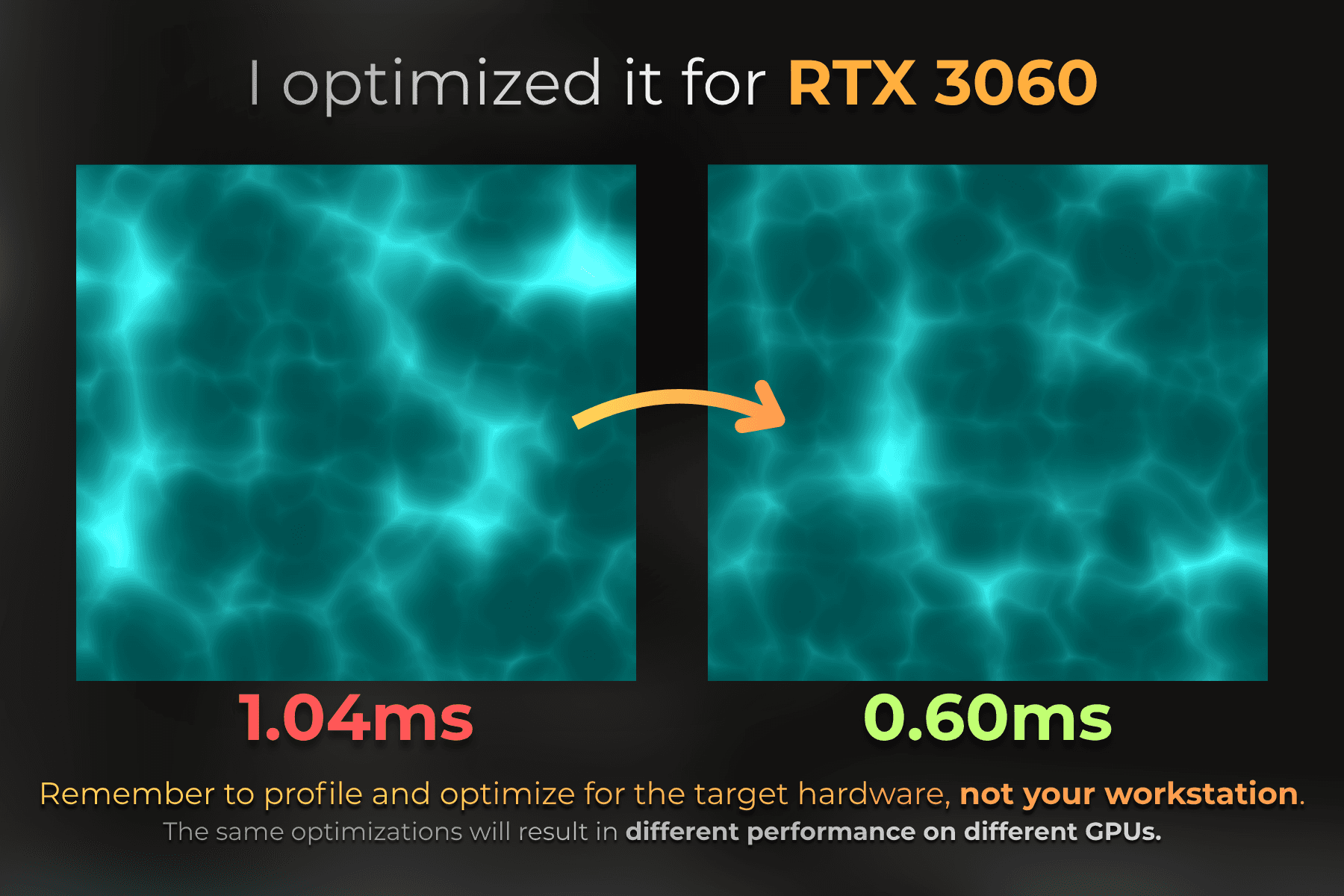

Now that I have stronger GPU optimization skills, I went back to one of those old math-only shaders. I wanted to see if I could make it faster by shifting part of the work to the texturing units.

So, based on this experience:

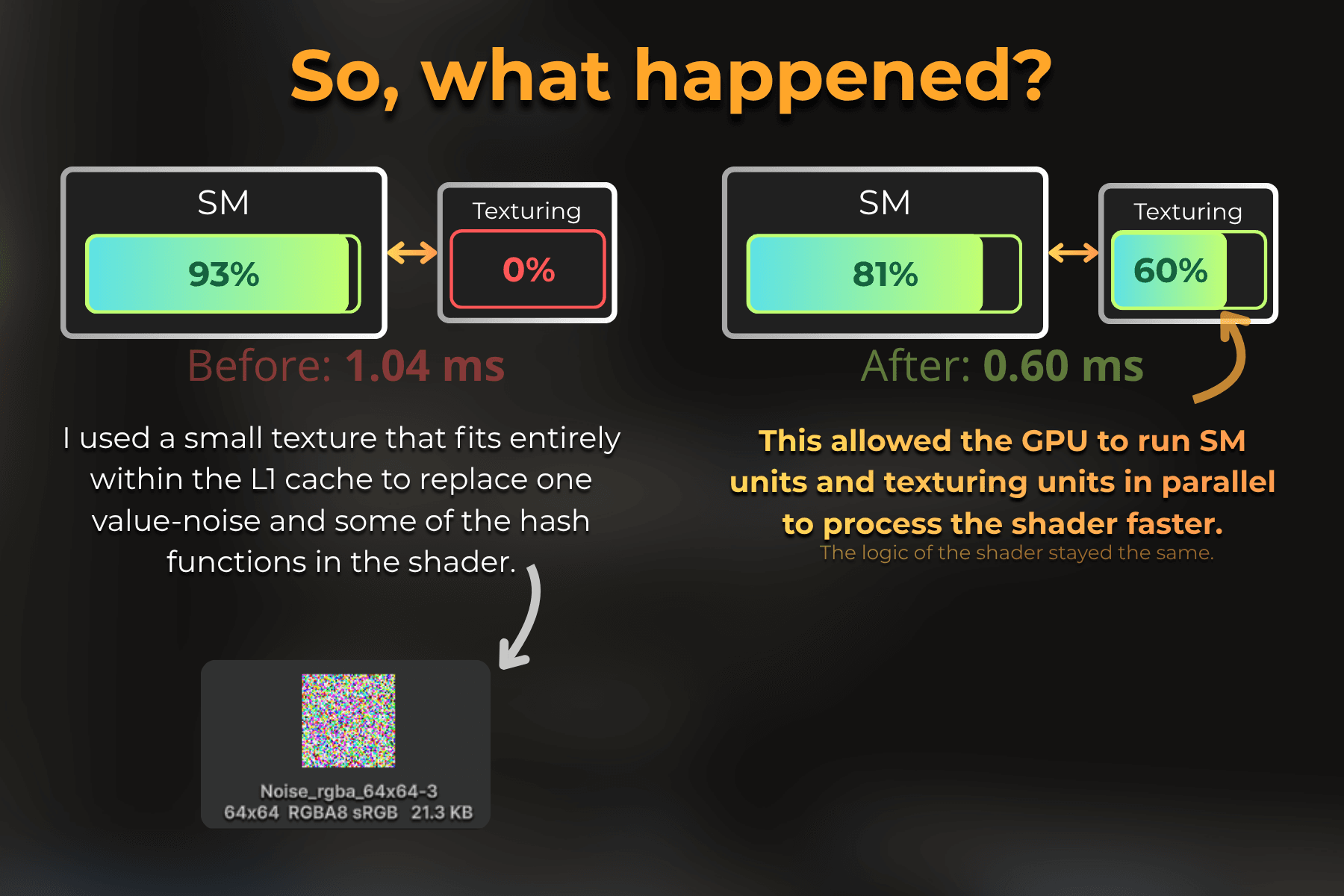

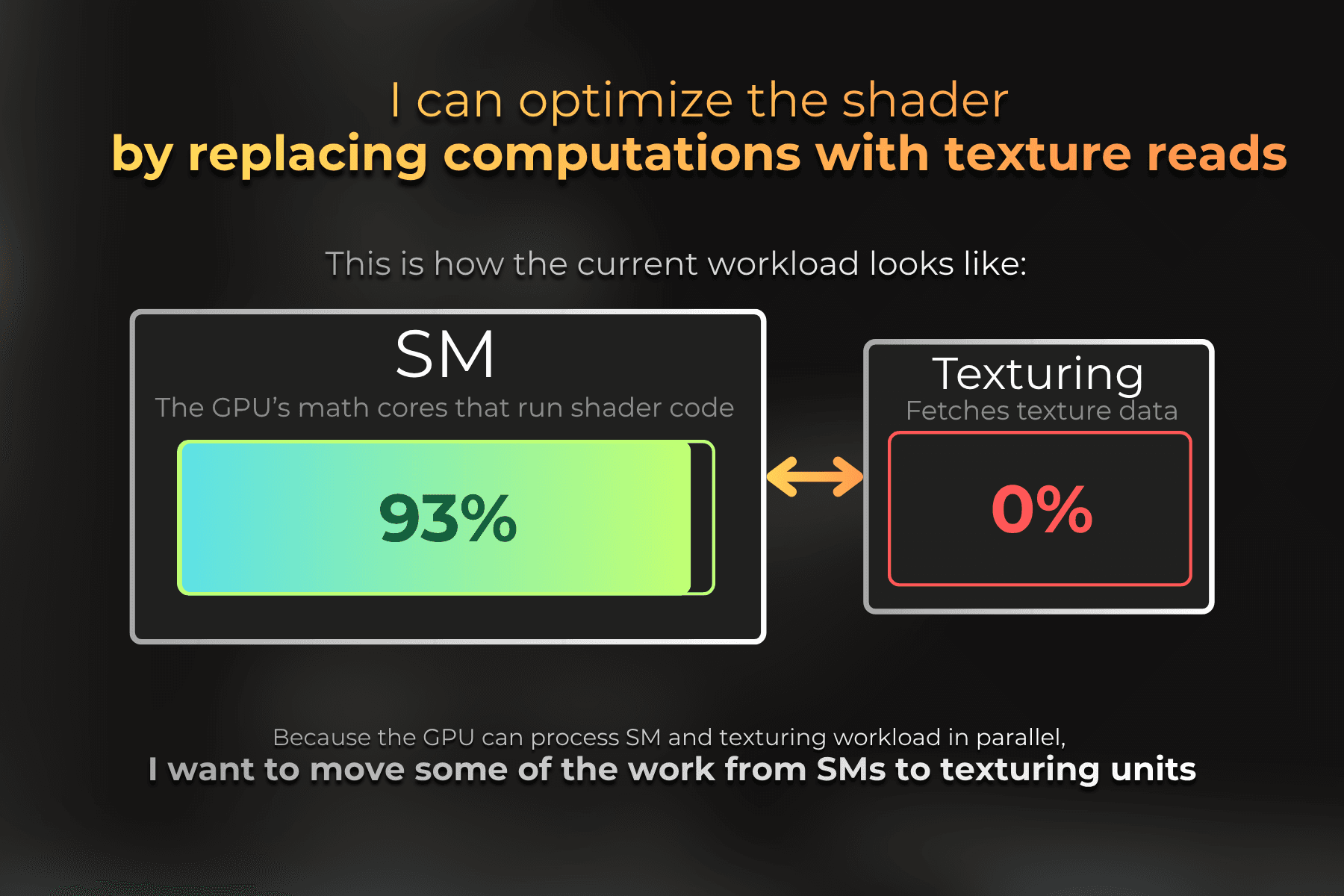

💡 Compute and texturing run at the same time on the GPU. If texture fetches hit the cache often enough, they overlap with arithmetic and increase overall GPU throughput.

I tried this idea:

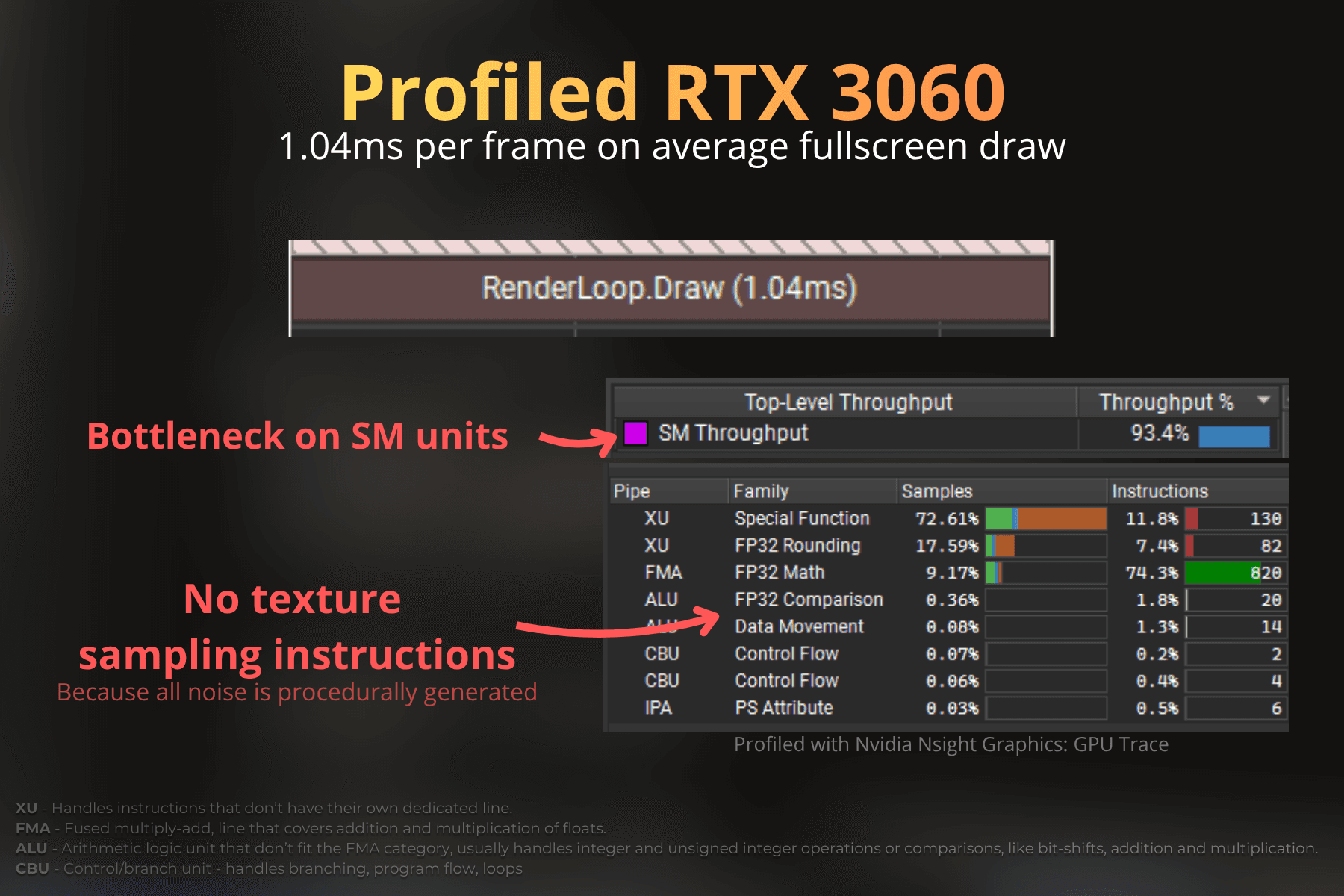

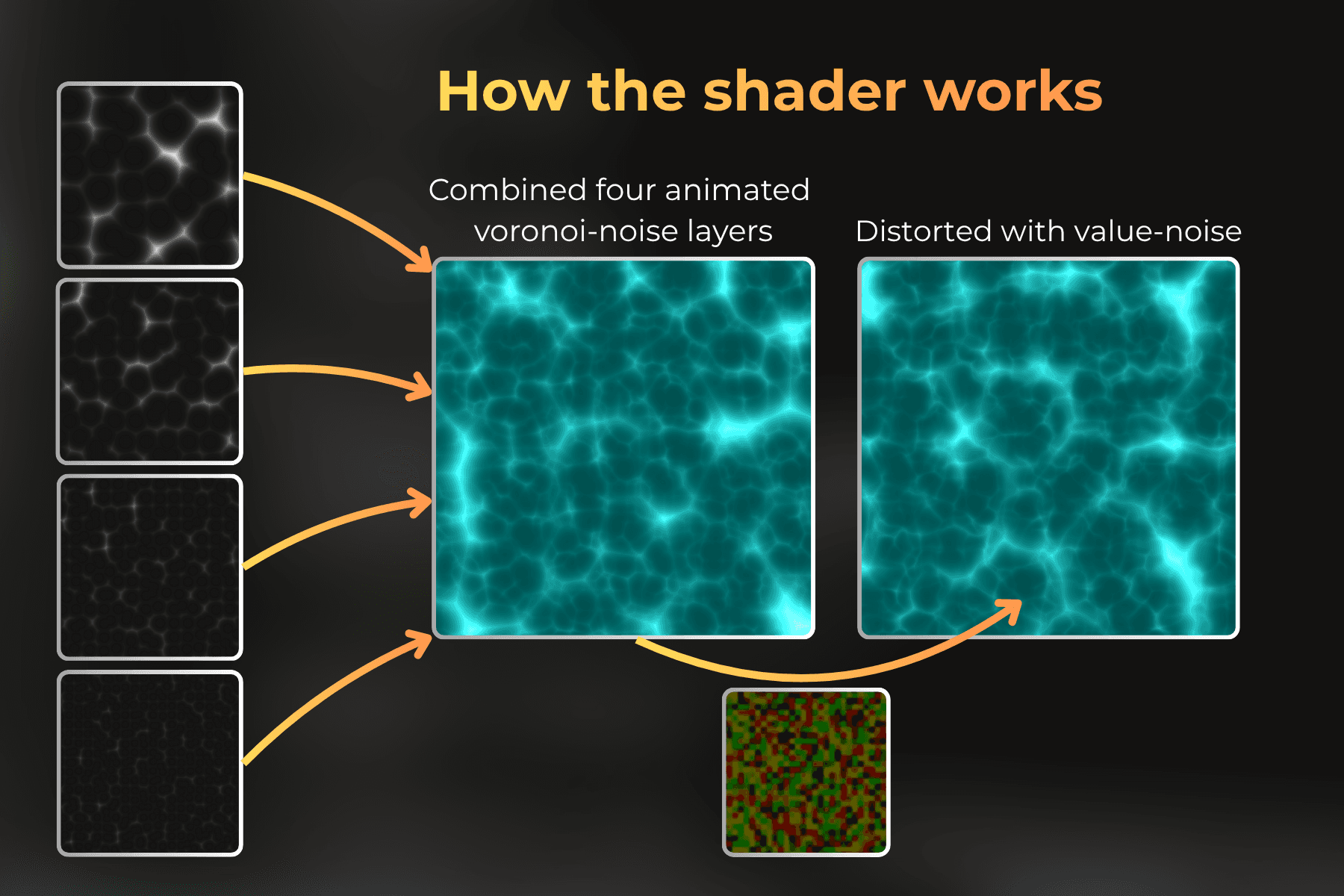

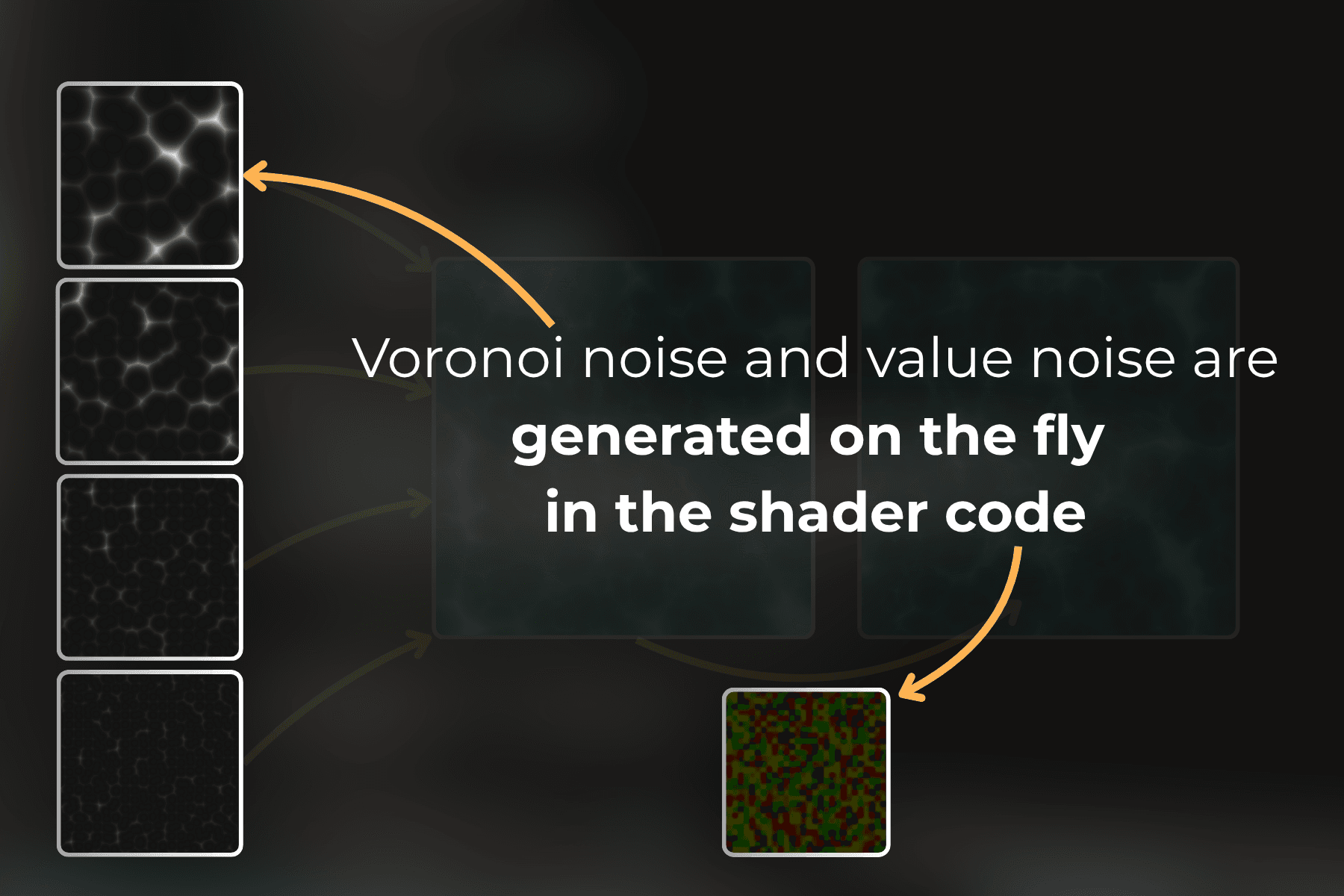

✔️ Start with a shader that does everything using math.

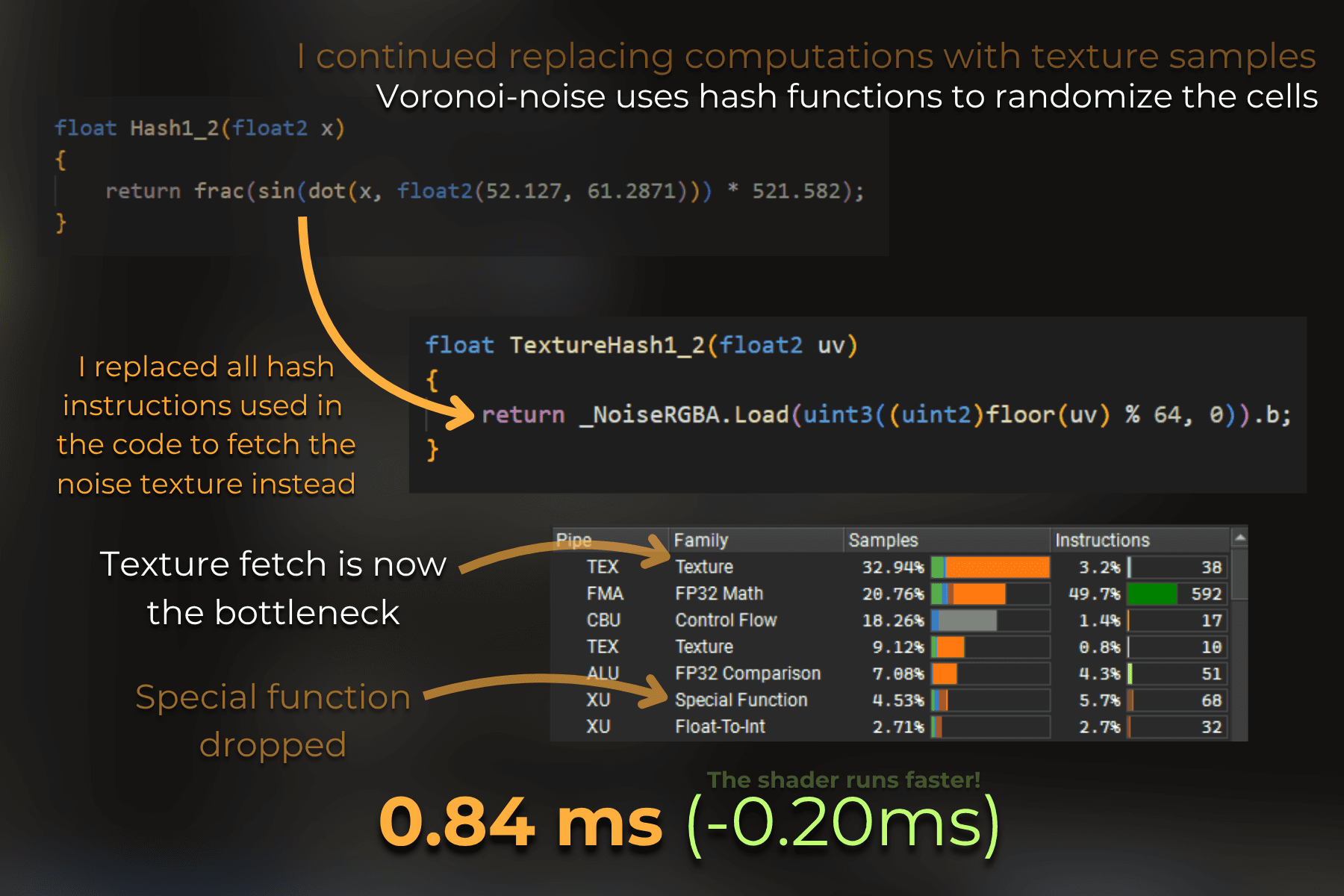

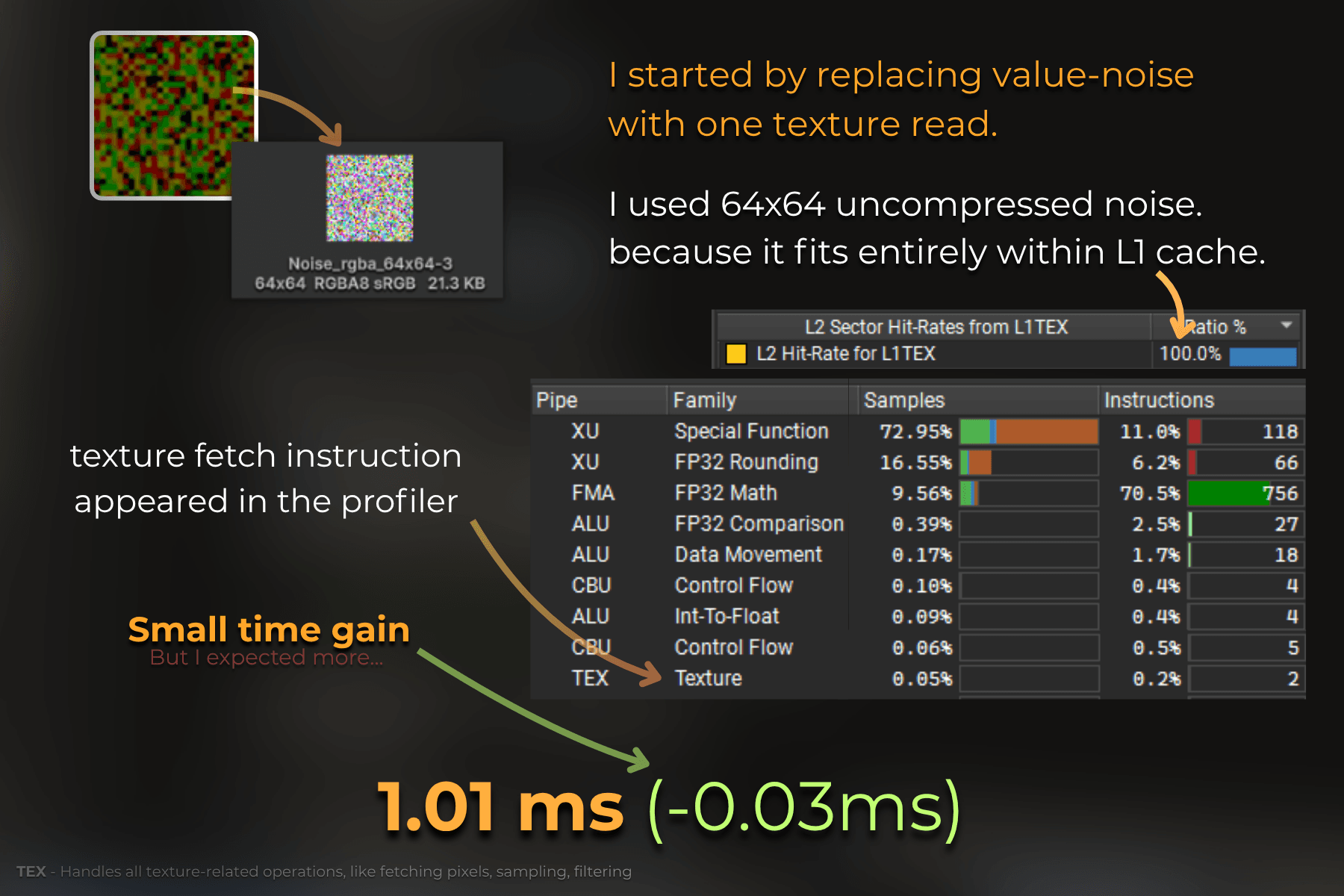

✔️ Move some of that math into texture lookups.

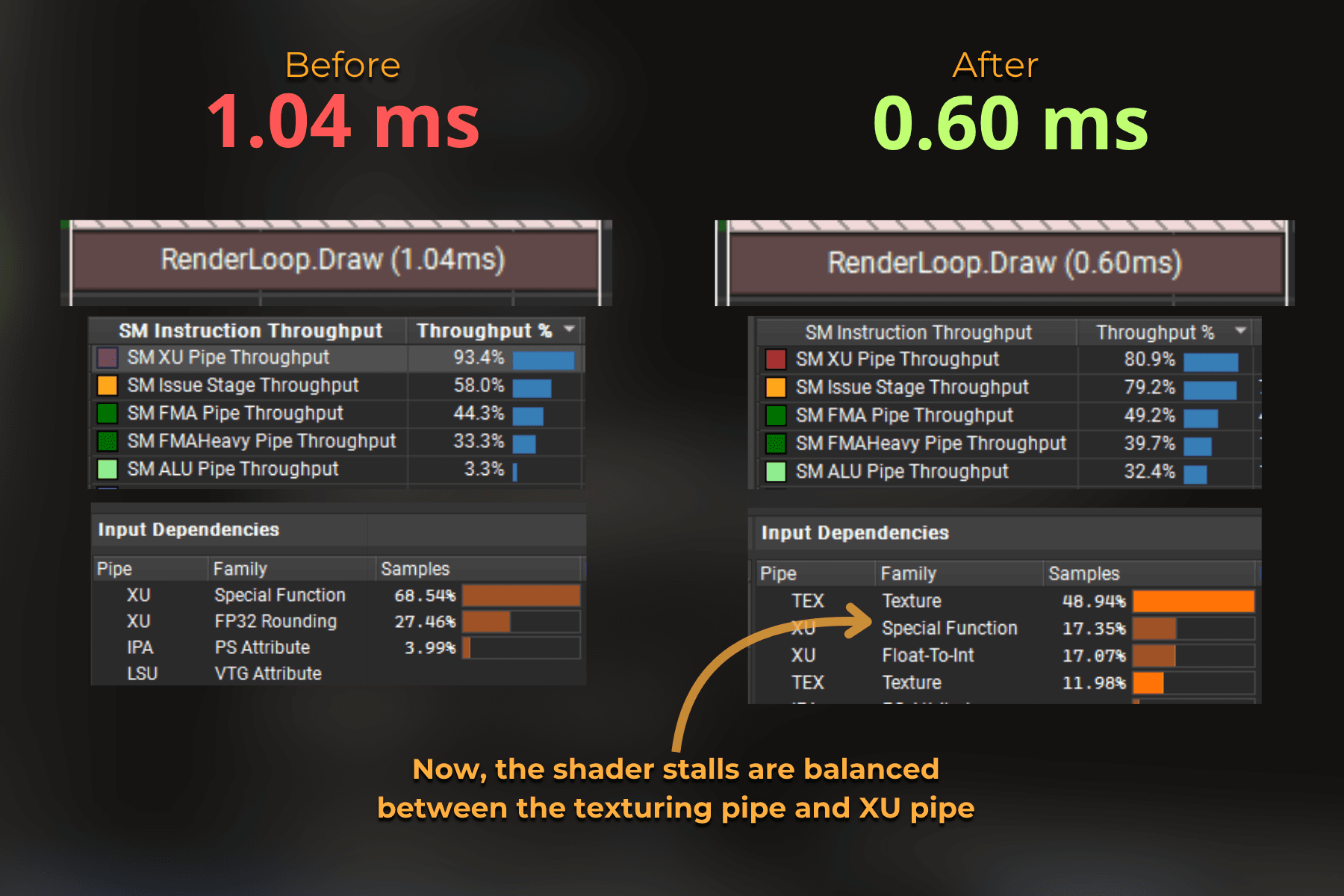

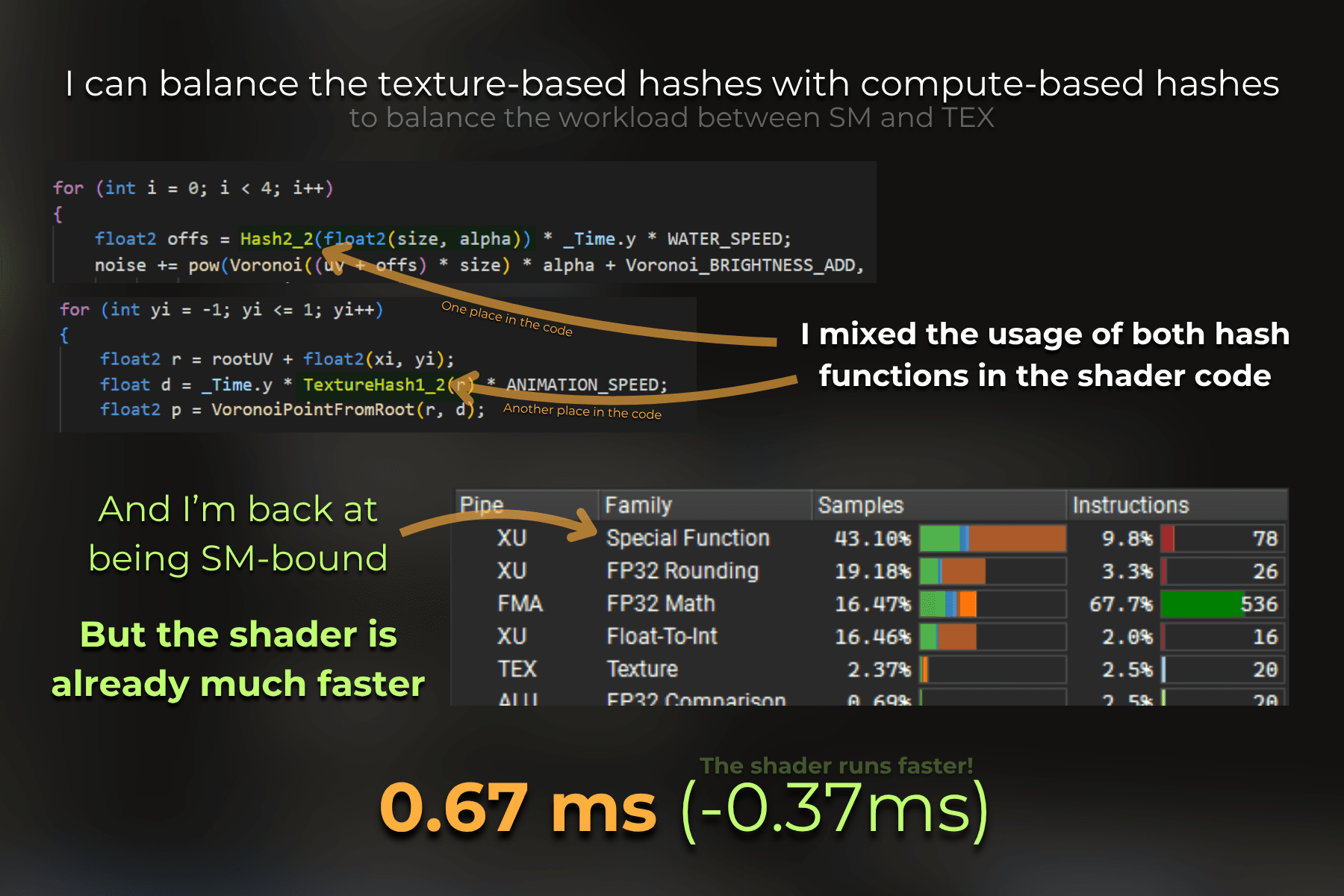

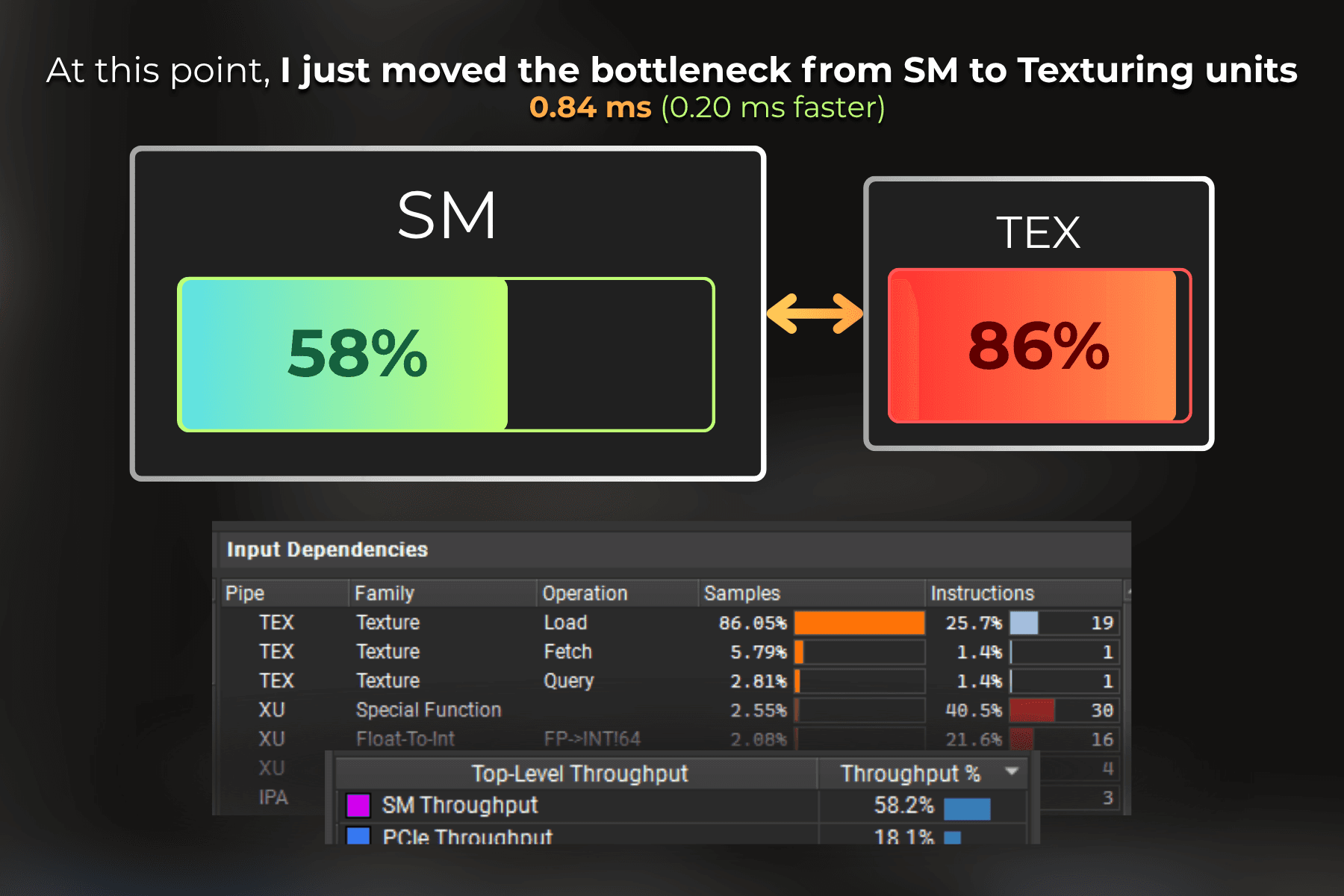

✔️ Balance the load between compute and texturing to find the best speed.
✔️ Ensure the shader logic stays mostly the same.

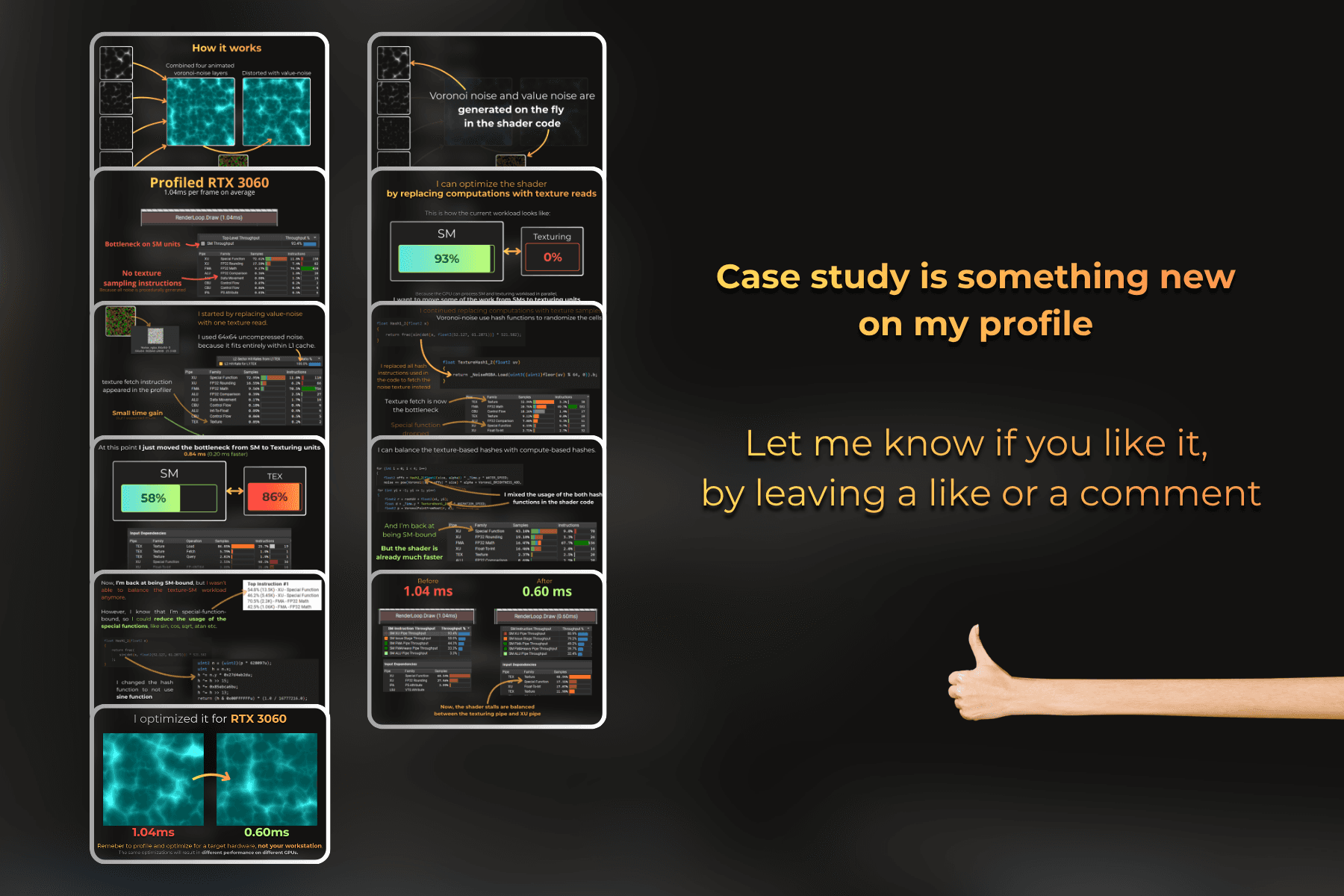

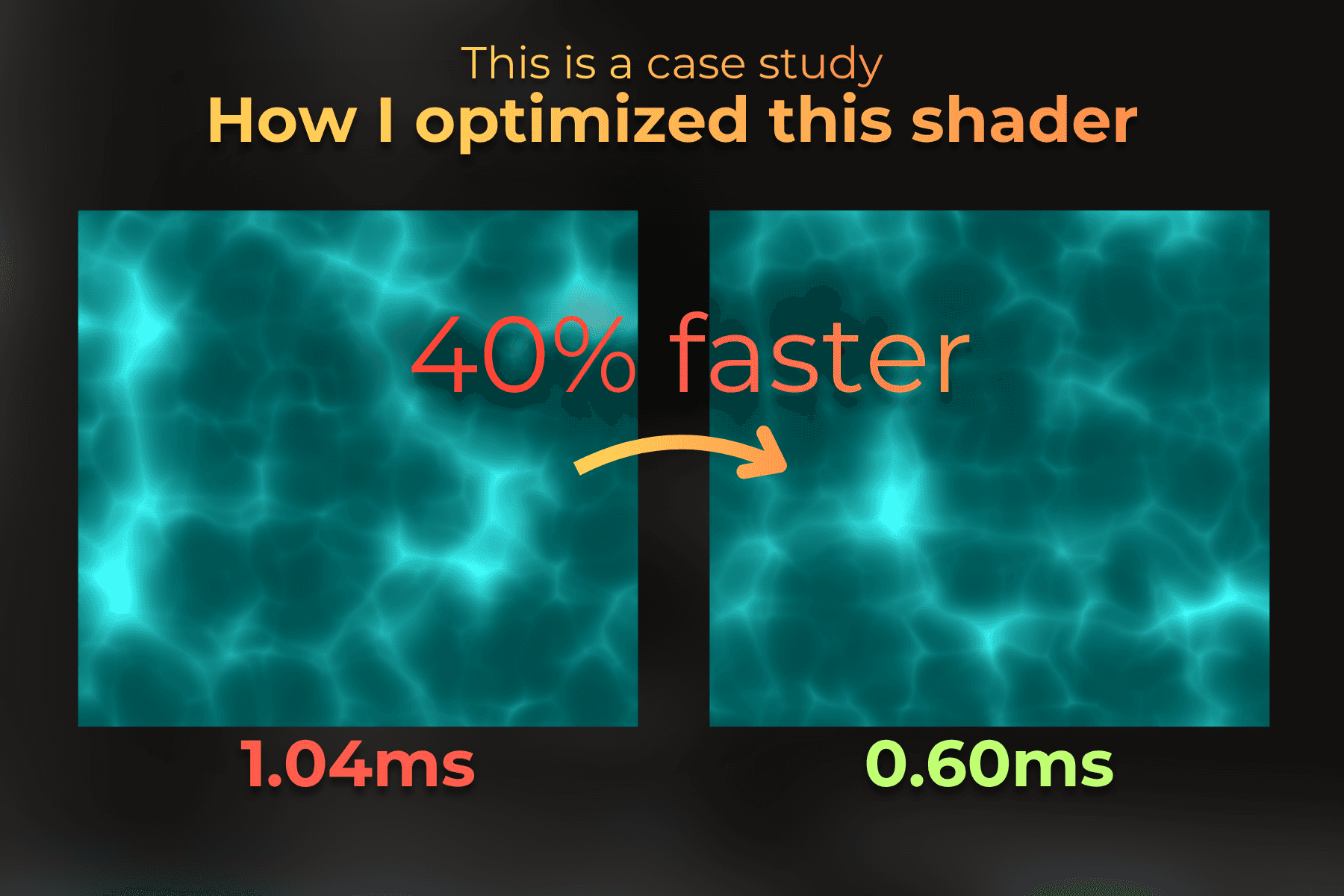

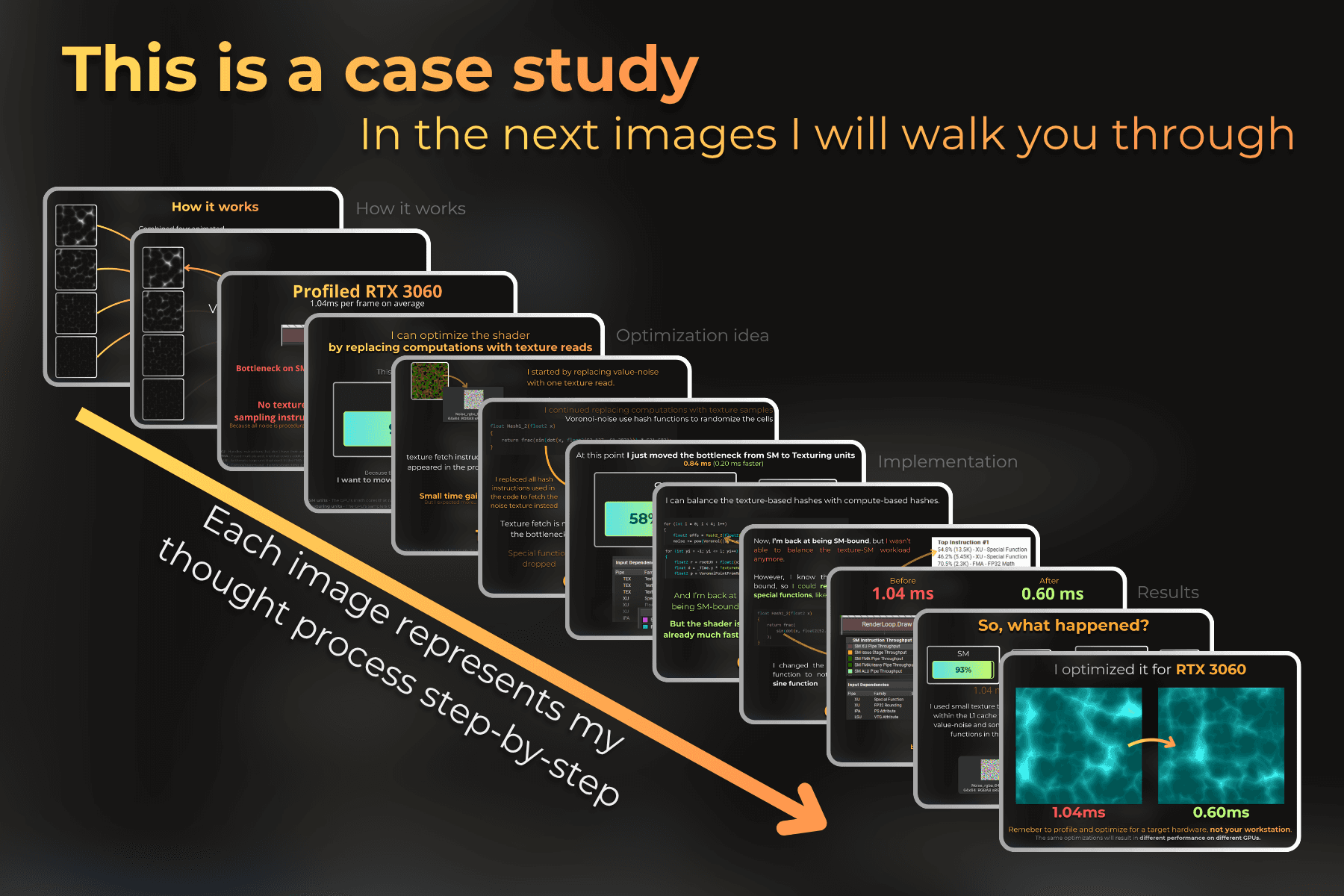

This is a case study I created in a form of slides, I hope it's good enough to read!

Related stuff

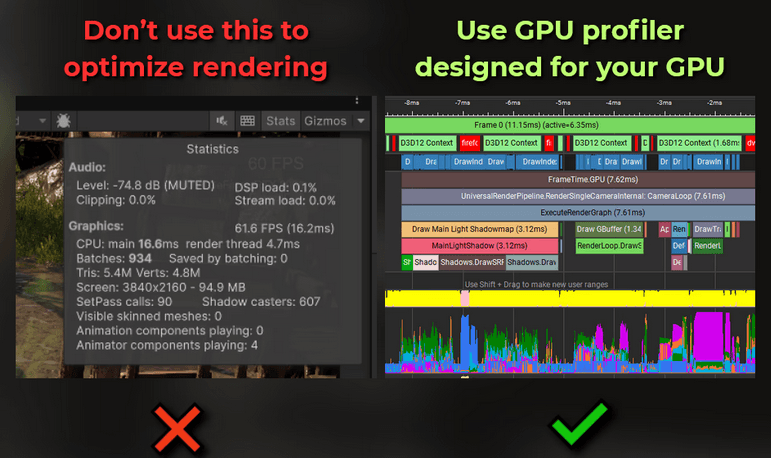

How do I profile GPUs - article about GPU profiling basics
