Terrain hack: Fastest erosion algorithm ever

This is the fastest hydraulic terrain erosion algorithm I've found. It was accidentally discovered by Hatchling, a Shadertoy user who posted a few terrain-erosion shaders. When he created those shaders, I was experimenting with terrain erosion myself, and seeing a new algorithm was unexpected.

I studied his shaders and implemented my own version in Unity to learn more about them. Below erosion takes 100ms for a 1024x1024 heightmap on RTX 3060. It would take 1 second to process 10 KM2 of the terrain - insane efficiency.
(For 1 sample per m2)

Since learning this algorithm, I haven't seen it used by anyone else, so I decided to write this article to raise awareness of different erosion algorithms. Here I will explain how the algorithm works. Spoiler: it is simple.

___

How the Hatchling's algorithm works

The author discovered this algorithm by accident, so don't expect it to simulate water, raindrops, or anything similar. The algorithm uses a mathematical trick. It is an image filter that processes the heightmap as an image.

Let's see how it works in a single dimension first, then extrapolate it to a 2D heightmap filter.

___

Fourier series analogy

You're probably familiar with the Fourier series, or at least you've heard of that. It is not needed to understand it for the Hatchling's algorithm, but it uses a very similar concept.

A Fourier series is a set of sine functions of different amplitudes, frequencies, and phase offsets that can approximate other functions.

So having this function:

I can approximate it using 5 sine functions, like this:

___

The Hatchling's erosion concept

Hatchling's algorithm uses a similar concept. It approximates the function using a set of different functions.

This is an example 1D heightmap function that I will process. The top line represents the value 1, and the bottom line is 0.

Now, imagine I want to approximate this function using slab-like functions:

___

Creating a "slab" function

Now, how can I create such a function that approximates the original one?

First, I will pick a threshold value, e.g., 0.4.

With this threshold, I can see which part of the function is above or below it. The switch is the intersection point.

Now, I can implement a search window that, for each value in this function, finds the distance to the intersection:

If there is an intersection in the search window, I remap the distance to the intersection into a linear function.

With a smaller search window, the slope is shorter and steeper:

I created this shader code that implements the slab function:

float GetSlabFunction(float uv, float texelSize, float threshold)
{
	float windowSize = 20.0;
	float maxDistance = texelSize * windowSize;

	float minDistanceToPositive = 999.9;
	float minDistanceToNegative = 999.9;

	// Traverse the window using few discrete steps
	for (float x = -windowSize; x <= windowSize; x++)
	{
		float offset = texelSize * x;
		float offsetLength = abs(offset);

		// Update the distances to the threshold intersection
		if (GetFunctionValue(uv + texelSize * x) > threshold)
			minDistanceToPositive = min(minDistanceToPositive, offsetLength);
		else
			minDistanceToNegative = min(minDistanceToNegative, offsetLength);
	}

	// Convert the distance into a clamped linear function.
	return linearstep(-maxDistance, maxDistance, minDistanceToNegative - minDistanceToPositive

___

Layering multiple functions

Now, I can pick a few thresholds and try to approximate the function. Here is how the approximation looks for 5 layers:

Now, see what happens when I increase the number of layers:

And this is the code that combines the layers:

float layersCount = 200.0;
float heightSum = 0.0;

for (float i = 0.0; i < layersCount; i++)
{
	// Each layer has a different threshold.
	// All thresholds are between the min and max terrain heights.
	float threshold = mix(minHeight, maxHeight, i / (layersCount - 1.0));

	// Each layer is accumulated
	heightSum += GetSlabFunction(uv, texelSize, threshold);
}

// Accumulated layers are remapped to the terrain height again
fragColor = vec4(mix(minHeight, maxHeight, heightSum / layersCount

___

Modifying window size

Now, let's check what happens when I modify the search window size:

A smaller window provides a shape closer to the original function.

Comparison with the original function

Now let's compare the original function with the approximation. I plotted both the original and approximated functions.

At first glance, this approximation transfers sediment down the slopes and smooths out small bumps.

It creates pointy hills, giving the impression of loose soil, like sand.

This approximation closely resembles water and soil erosion.

___

Implementing Hatchling's algorithm on a 3D terrain

Now that it works and looks nice for a 1D function, let's make it work for the heightmap as well.

___

Unity setup

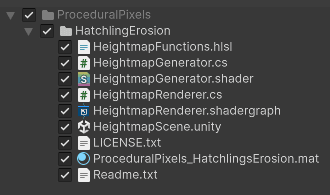

I've created a HeightmapRenderer component that renders the terrain heightmap in 3D. This is done to simplify GPU processing of the heightmap.

The heightmap uses R_Float32 format, and the renderer generates colors procedurally based on the heightmap values.

I initialized the terrain with fractal value noise, using this shader code:

float angle33 = PI * (33.0 / 180.0);
float2x2 rotation = float2x2(cos(angle33), sin(angle33), -sin(angle33), cos(angle33));

for (int i = 0; i < 11; i++)
{
	uv = mul(rotation, uv);
	noiseSum += pow(abs(Noise1_2(uv * scale)), 0.8) * alpha;
	maxValue += alpha;
	alpha *= 0.55;
	scale *= 1.85;
}

return pow(noiseSum / maxValue, 1.9) * 0.8 - 0.1

The terrain is rendered using a dense mesh. I didn't optimize anything here because I want to focus on the erosion algorithm.

___

Slab function for the terrain

As in the 1D implementation, I will now create a slab function. Let's pick a threshold value, for example, 0.3.

The only difference from the 1D function is that the search window is two-dimensional. Instead of a single for-loop, I will use a nested for-loop:

#define kernelSize 7

float GetSlabFunction(float2 uv, float2 texelSize, float threshold)
{
	float minDistanceToPositive = 9999.0;
	float minDistanceToNegative = 9999.0;

	// Traverse the search window in two dimensions
	[loop]
	for (int x = -kernelSize; x <= kernelSize; x++)
	{
		[unroll]
		for (int y = -kernelSize; y <= kernelSize; y++) // Now, second nested loop is here
		{
			// Update the distances
			float2 offset = float2(x, y) * texelSize;
			if (IN_Heightmap.SampleLevel(linearClampSampler, uv + offset, 0.0).r > threshold)
				minDistanceToPositive = min(minDistanceToPositive, length(offset));
			else
				minDistanceToNegative = min(minDistanceToNegative, length(offset));
		}
	}

	// Remap found distance into a clamped linear function
	float edge0 = kernelSize * texelSize.x;
	float edge1 = -kernelSize * texelSize.x;
	return linearstep(edge0, edge1, minDistanceToPositive - minDistanceToNegative

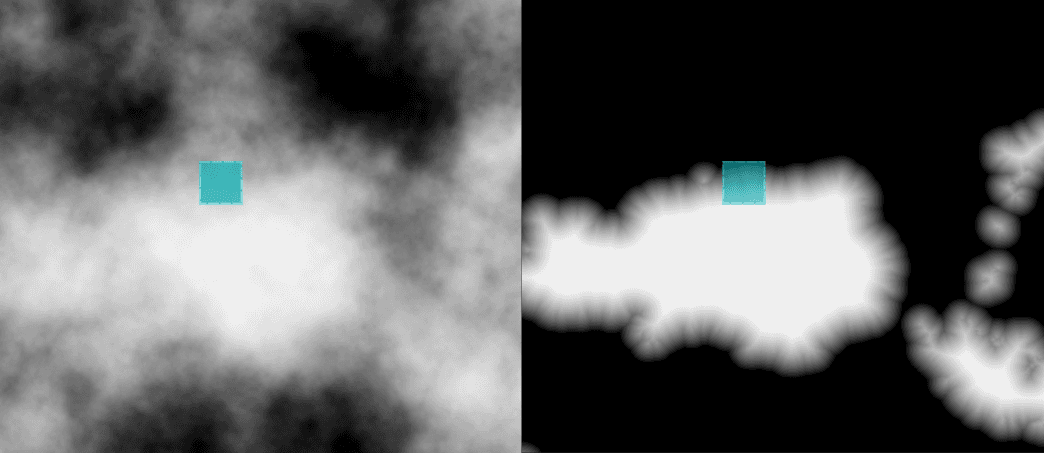

This is what a single terrain slice looks like. Forcing a specific slope angle creates pyramid-like structures.

For reference, here is the size of the search window.

___

Combining the layers

Now, let's see what multiple combined layers look like. I wrote this code to combine the layers. This code is IDENTICAL to the code for the 1D version.

float heightSum = 0.0;

// Iterate each layer
[loop]
for (int i = 0; i < layersCount; i++)
{
	float t = (float)i / (layersCount - 1);
	float thresholdHeight = lerp(minHeight, maxHeight, t);
	heightSum += GetSlabFunction(uv, texelSize, thresholdHeight);
}

heightSum /= (float)layersCount;
heightSum = lerp(minHeight, maxHeight, heightSum);
return heightSum

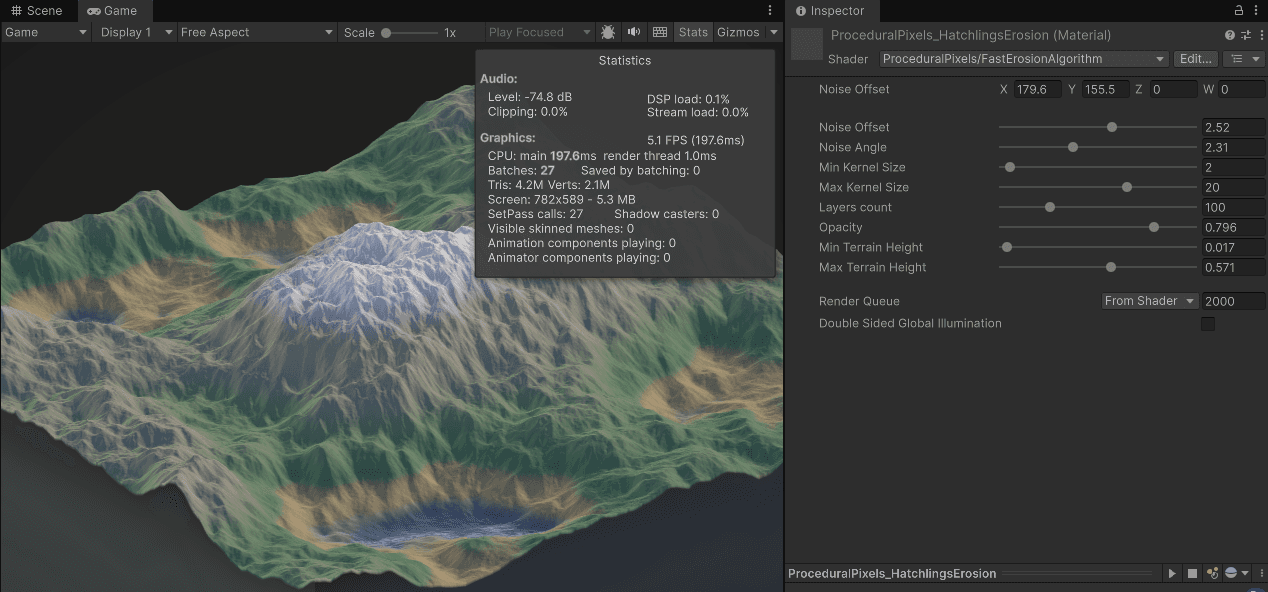

Results:

Wow, isn't that impressive? No water simulation, no droplet simulation, just clever function approximations.

___

Window size

Now, let's see how the search window size affects visuals and performance. I tested various kernel sizes.
In each case I combined 120 layers for 512x512 heightmap.

Measured time is the time of the erosion application.

___

Comparison - before and after

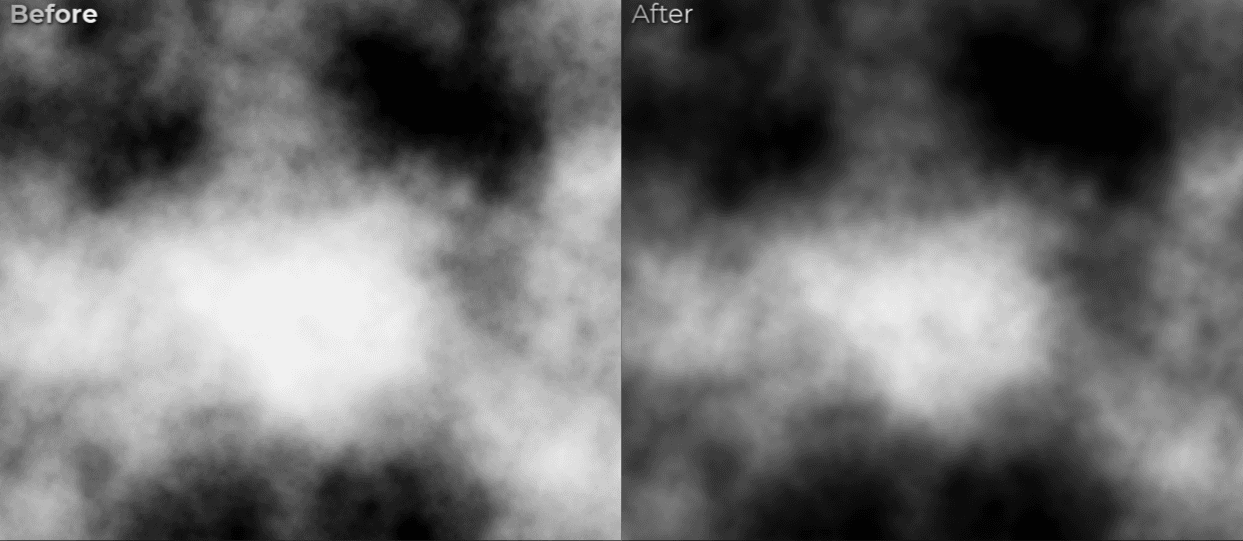

The implemented heightmap filter flattens bumps on the terrain and mimics soil movement down the slopes:

Full terrain before:

Full terrain after (windowSize=8, layersCount=120, 1024x1024 heightmap)
195 ms generation time on RTX 3060

___

Potential algorithm improvements

Visuals

The first improvement idea is to use a modified search window size depending on the height.

My second improvement idea is to execute the erosion a few times in a row, each with partial opacity.

___

Performance improvements

The highest computation cost comes from search window traversal. For the heightmap, the complexity is O(n^2). The algorithm could be much faster for larger search windows if the search used an acceleration structure, such as a min-max quad tree.

___

Pros and cons of Hatchling's erosion

Let's consider the pros and cons of this algorithm:

Pros:

• Very simple implementation - core functions fits into 30 lines of code.

• Easy to improve visuals further.

• Few parameters - no confusion when adjusting them.

• The most efficient hydraulic erosion I've seen.

• With even more potential for performance improvements, for example with min-max quad tree acceleration for the search.

Cons:

• Works only on a heightmap - doesn't produce other outputs, like sediment transport or water flow velocity.

• (But the author of this algorithm was able to render the rivers created by this algorithm, so it is definitely possible to add some of the outputs - I just didn't study that)

• The algorithm isn't based on real-life observations and relies on a math trick.

___

More about erosion

Erosion is the main reason real-world terrain looks the way it does. It describes how the world was shaped, an extremely complex process. While I explained the algorithm for fast hydraulic rain-based erosion here, it's important to know there are many different erosion types:

• Related to water: rain, streambank erosion, coastal erosion,

• Wind erosion,

• Mass movement,

• Glacial erosion,

• Biological erosion - caused by the vegetation, roots, etc.

Each erosion type can be simulated. My take for gamedev is that it is not important to make the terrain super realistic, but to make the results believable and enjoyable to traverse. Usually, when working with terrain, we only need some touches that make it look natural. This is why we often don't use extremely complex, realistic erosion algorithms.

Usually, the process is:

1. Generate rough terrain shape using noise and simple shapes.

2. Simulate erosion processes using simple algorithms. (You don't want to wait ages for the algorithm to complete.)

3. Modify the terrain to add gameplay elements: roads, rivers, buildings, and other human-made modifications.

___

Summary

Hatchling's erosion algorithm is the fastest I've seen for hydraulic terrain erosion. It processes a 1024x1024 heightmap in about 100-300ms on RTX 3060 (depends on the parameters)

It is not physically accurate, but it quickly produces believable results - for gamedev, that is often all you need.

If you have questions or feedback, feel free to leave a comment on my LinkedIn post.

___

Hatchling's shaders I've studied

Those are the shaders I've studied to learn this algorithm:

• Procedural Erosion 2.0 by Hatchling https://www.shadertoy.com/view/ddXSRr

• Large Mountains Erosion Terrain by Hatchling: https://www.shadertoy.com/view/cd2GDz
